Search Database
Alexandria Insurance CO.
Location
Cairo
Country
Egypt

Architect/Engineer/Team
Sayed Karim (Korayem)

Construction
1938

Address
Kasr El-Nil Street

Project Status
Built
Building Type
Mixed-use (apartments & offices)

Notes
The building’s massive volume rises thirty meters before taking on a pyramidal form tapering at sixty degrees. This volumetry is a resultant of the developer’s intention to profit fully from the land exploitation limits allowed by the law. On the top of the pyramid, sits an enormous cube-shaped water reservoir, a component in the cooling mechanical system.

The ground floor is designed to integrate into the urban fabric as its built-up area is split apart in two parts forging an urban corridor connecting the two bordering streets. To enhance this feature, the main entry point into the larger block is placed inside the corridor. Besides, this configuration allows the provision of more commercial spaces whose value surpasses that of the neighboring stores since they open onto the corridor linking the nearby hotel and the stock exchange market.

The first floor is a mezzanine overlooking the ground floor and is reserved for storage and services for the commercial area. Above, seven floors contain offices arranged around the circulation and service core of the building. Although the complex is primarily designed for offices and commercial spaces, the floors within the pyramidal part are designed to contain luxurious suites.
Sources
Majallat Al-Imarah, 1953 (no.1/2-5/6)
Information in this database is updated constantly. Do not hesitate to send us comments, information, or illustrations (with appropriate credits) to database@arab-architecture.org

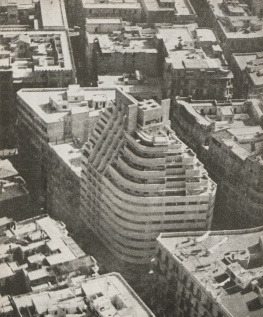

Birds Eye View
Source: Majallat Al-Imarah, 1953 (no.1/2-5/6)
© Majallat Al-Imarah

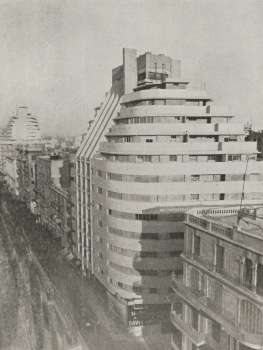

Aerial View
Source: Majallat Al-Imarah, 1953 (no.1/2-5/6)
© Majallat Al-Imarah

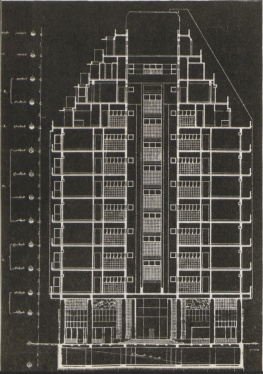

Section
Source: Majallat Al-Imarah, 1953 (no.1/2-5/6)
© Majallat Al-Imarah
Typical Floor Plan
Source: Majallat Al-Imarah, 1953 (no.1/2-5/6)
© Majallat Al-Imarah

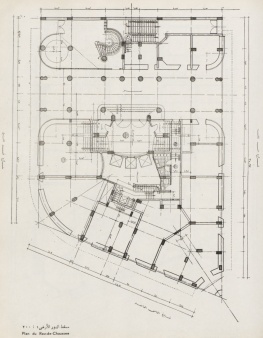

Ground Floor Plan
Source: Majallat Al-Imarah, 1953 (no.1/2-5/6)
© Majallat Al-Imarah
