Helwan New City Residential Groups Project
Location
Cairo
Country
Egypt
Construction
1950s
Address
Helwan
Project Status
Unbuilt
Building Type
Housing
Notes
The building is a residential complex prototype inspired from Le Corbusier’s Unité d’Habitation de Marseille. It consists of two parallel 14-storey rectangular wings, elevated on pilotis, linked with a vertical circulation tower. An elongated block, round at its extremities, is perpendicular to these blocks and hosts public activities.
Just like Le Corbusier’s building, a central corridor on each floor gives access to split-level apartments of various sizes.
Sayed Karim carefully devised a ground floor in connection with the neighbourhood with activities alongside the green landscape. A casino, restaurant, swimming pool, sports area, multipurpose hall, a grocery shop, and an underground parking allow the building to connect with the urban context.
Sources
Majallat Al-Imarah, 1953 (no.7/8-9/10)
Information in this database is updated constantly. Do not hesitate to send us comments, information, or illustrations (with appropriate credits) to
database@arab-architecture.org

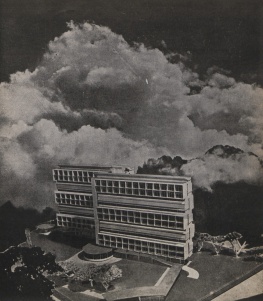

General Model View
Source: Majallat Al-Imarah, 1953 (no.7/8-9/10)
© Mjallat Al-Imara
Model birds' eye view
Source: Majallat Al-Imarah, 1953 (no.7/8-9/10)
© Mjallat Al-Imara
Drawings & Diagrams
Source: Majallat Al-Imarah, 1953 (no.7/8-9/10)
© Mjallat Al-Imara
Plans & Sections
Source: Majallat Al-Imarah, 1953 (no.7/8-9/10
© Mjallat Al-Imara
Ground Floor Plan & Section showing the Underground Facilities
Source: Majallat Al-Imarah, 1953 (no.7/8-9/10)
© Mjallat Al-Imara
